A silicon anode platform, engineered from first principles for commercial batteries.
Terra Silicon™ solves the two barriers that have kept silicon out of commercial cells: mechanical instability and manufacturing complexity.
Silicon stores up to 10× more lithium than graphite.
Silicon's theoretical capacity is 4,200 mAh/g versus graphite's 372 mAh/g. That single physical fact is why every serious battery roadmap includes silicon.
Why silicon has been difficult.
Silicon's chemistry advantage is real. Its engineering challenges are also real. Every previous approach has traded one for another.

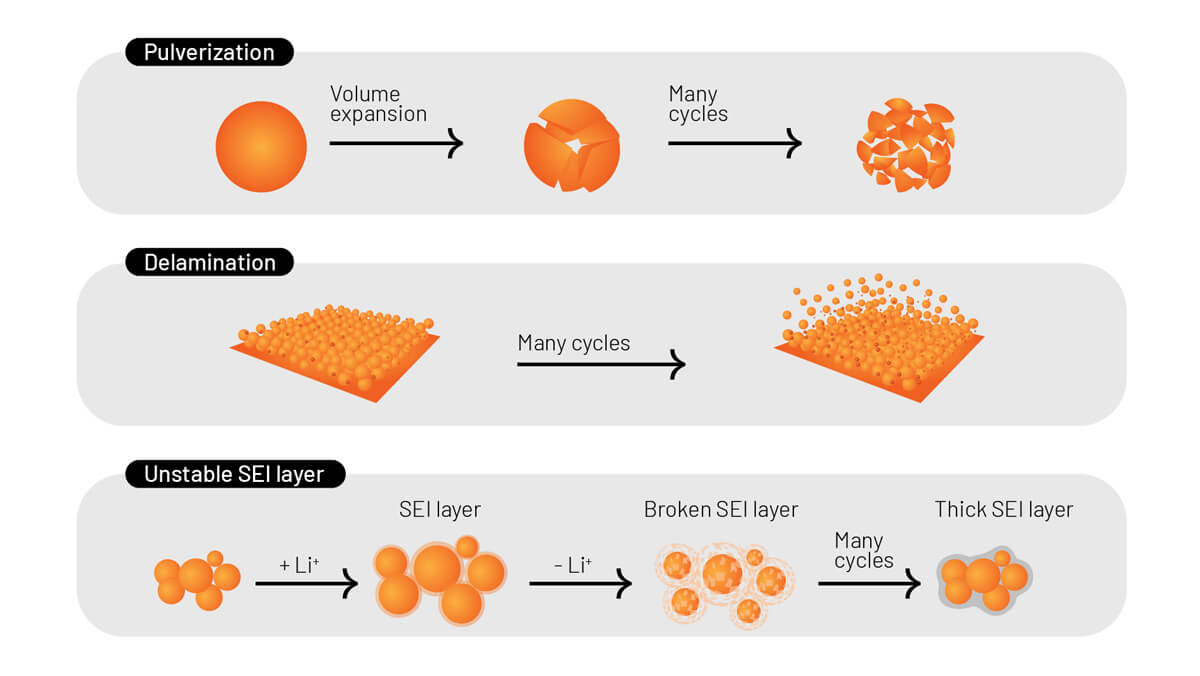

Volume Expansion
Silicon expands up to 300% during lithiation, fracturing conventional particles and destroying electrical contact.
Cycle Degradation
Repeated expansion cycles cause capacity fade in cells that were never designed for silicon strain.
Manufacturing Complexity
Many silicon materials require exotic process steps incompatible with standard electrode coating.
Production Cost
Yield loss and specialized handling drive the effective cost per kWh above commercial viability.
A particle architecture that contains expansion and preserves conductivity.
Terra Silicon is a proprietary single-crystal porous silicon with a wrinkled surface, engineered to absorb silicon's volume expansion internally. Silicon expands into designed void space, not into the surrounding electrode, preserving conductive pathways cycle after cycle.
Performance comparison.
Anode chemistries measured on the metrics that determine cell-level competitiveness.
| Metric | Graphite | Terra Silicon™ |
|---|---|---|
| Energy density gain | Baseline | +80% |
| Fast-charge (80%) | 30+ min | under 10 min |
| Cycle life | High | > 1,000 cycles |
| Calendar life | Standard | > 10 years |
| Drop-in manufacturable | Yes | Yes |
| Relative material cost | Baseline | Comparable at scale |
Built for the lines you already have.
Terra Silicon uses standard aqueous slurry chemistry, drops into conventional coating and calendering, and requires no bespoke handling.
- Standard NMP-free aqueous slurry compatible
- Conventional coating, drying, calendering
- Compatible with existing electrolyte formulations
- No new capex required for manufacturing integration
Frequently asked questions.
Terra Silicon™ is HKG Energy's wrinkled porous nanostructure silicon anode platform, designed to replace graphite in lithium-ion batteries. Its architecture accommodates silicon's natural expansion, enabling silicon loading up to 70 weight percent and delivering up to 40% longer battery duration, fast charging to 80% state of charge in under 10 minutes, and up to 50% cost reduction versus first-generation silicon solutions.
Terra Silicon™ uses a wrinkled, porous nanostructure that provides internal free volume to accommodate silicon's greater than 300% volumetric expansion during lithiation. The wrinkled morphology dissipates mechanical stress, and interconnected pores buffer structural changes while preserving electronic and ionic pathways. This prevents particle pulverization and electrode delamination, enabling silicon loading up to 70 weight percent with stable cycle life.
Compared to conventional graphite anode batteries, Terra Silicon™ cells deliver up to 40% longer battery duration, fast charging to 80% state of charge in under 10 minutes, up to 50% cost reduction versus first-generation silicon solutions, more than 1,000 cycles, and more than 10 years of calendar life.
Terra Silicon™ combines high energy density with high power, creating value across several sectors: electric vehicles for longer range, faster charging, and lower cost; consumer electronics and smart wearables for extended runtime in compact devices; drones and e-aviation for commercial and defense mission endurance; and grid-scale energy storage for long-duration, cost-effective renewable integration.
Yes. Terra Silicon™ is engineered for drop-in integration into existing gigafactory processes and is compatible with pouch, cylindrical, and prismatic cell formats.
Most competitors use low silicon blends around 5% to avoid volume expansion and instability. Terra Silicon™ enables silicon loading up to 70 weight percent, delivering roughly 80% higher energy density than today's best commercial solutions. This is achieved through our proprietary wrinkled porous structure, advanced conductive coatings, and a manufacturing process built for scalability and cost efficiency, delivering higher energy density, faster charging, and lower cost at commercial scale.
Yes. Terra Silicon™'s wrinkled porous nanostructure is compatible with both liquid and solid-state electrolytes. The internal pore network supports uniform lithium-ion transport and accommodates interfacial stresses, mitigating dendrite formation and mechanical failure that typically limit solid-state integration. It is positioned as a future-ready anode material for next-generation solid-state cells.
We welcome collaborations for pilot testing, joint development, and scale-up manufacturing. Interested partners can reach out via this website or email our team at tech@hkgenergy.com.
